General Information
Extended Product Type:
CA4-01
Product ID:
1SBN010110R1001
EAN:
3471523130029
Catalog Description:

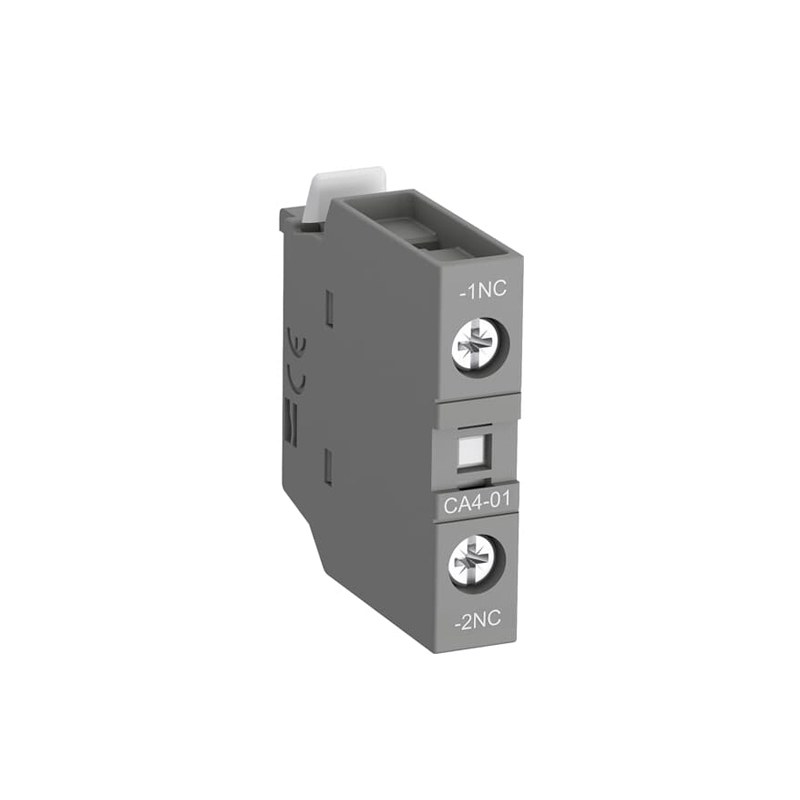

CA4-01 Auxiliary Contact Block
Long Description:
The auxiliary contact blocks are
used for the operation of auxiliary circuits and control circuits for
standard industrial environments.
Types of auxiliary contact blocks for front mounting:
• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts
• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact
• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.
Select
the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or
CA4-..N type, according to the contactor or contactor relay type for
compliance with the standard requirements (see "Terminal marking and
positioning").
Types of auxiliary contact blocks for side mounting:
• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.
For
clipping onto the right- and/or left-hand side of the contactors. The
auxiliary contact blocks are equipped with screw type connecting
terminals delivered open, protected against accidental direct contact
and bear the corresponding function marking
